Eaton

Eaton 5P1550GR UPS

Name: Eaton 5P1550GR UPS
Brand: Eaton
SKU: 5P1550GR
Price: 1646.23 CAD
Availability: OutOfStock

~~$2,648.80~~ $1,646.23 Save $1,002.57 Out of stock

5P1550GR

Product variants

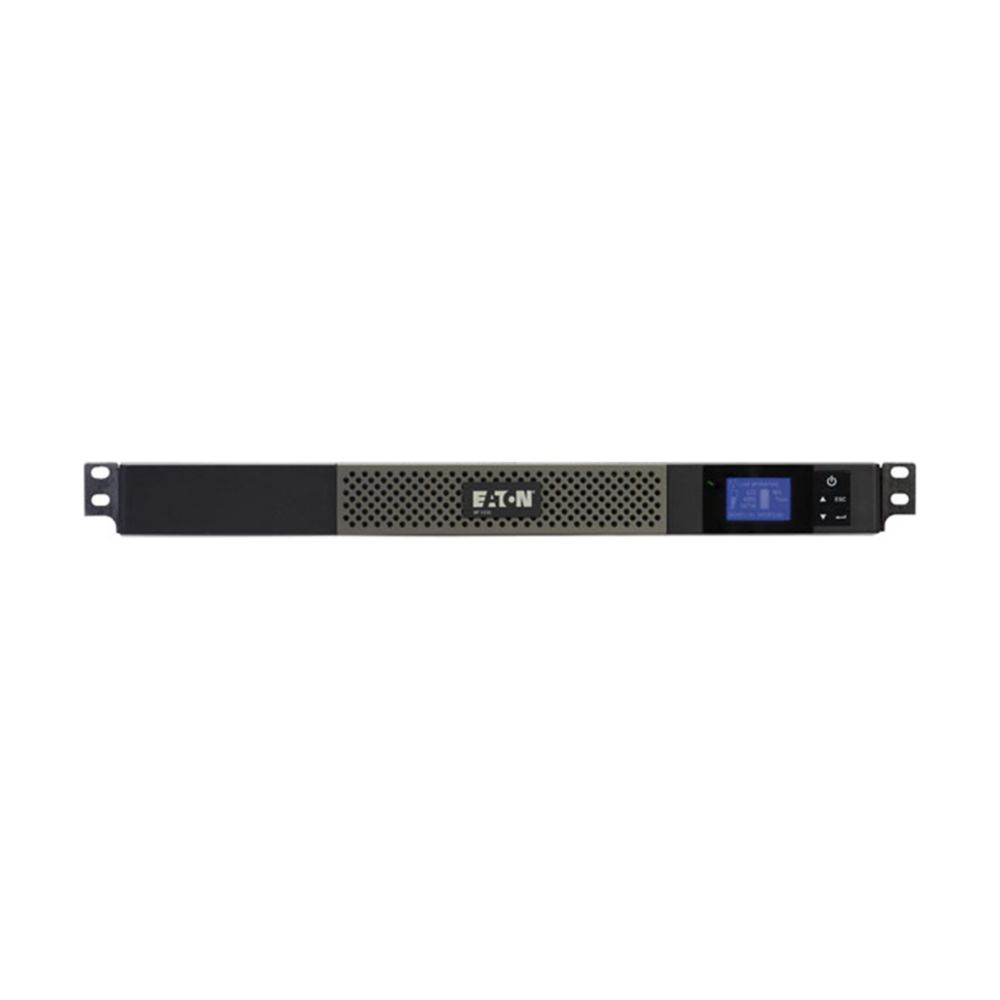

The Eaton 5P is a line-interactive UPS that provides reliable, Enterprise-class battery backup for network closets and small data centers. This compact, space saving model is available in 1U rackmount configurations. Eaton’s Optional Gigabit Network card (NETWORK-M3) is available for remote monitoring, troubleshooting and cybersecurity, and it’s user-friendly LCD display provides all critical UPS information in a single screen view.

Quick Tech Specs

Compact, space saving rack-mount UPS with full protection against blackouts, brownouts, and surges
Eaton’s exclusive ABM® technology increases battery service life by 50%.
Eaton Intelligent Power Manager Software available with options for remote monitoring and management
Runtime: 13 minutes at half load / 4 minutes at full load
(6) C13 outlets

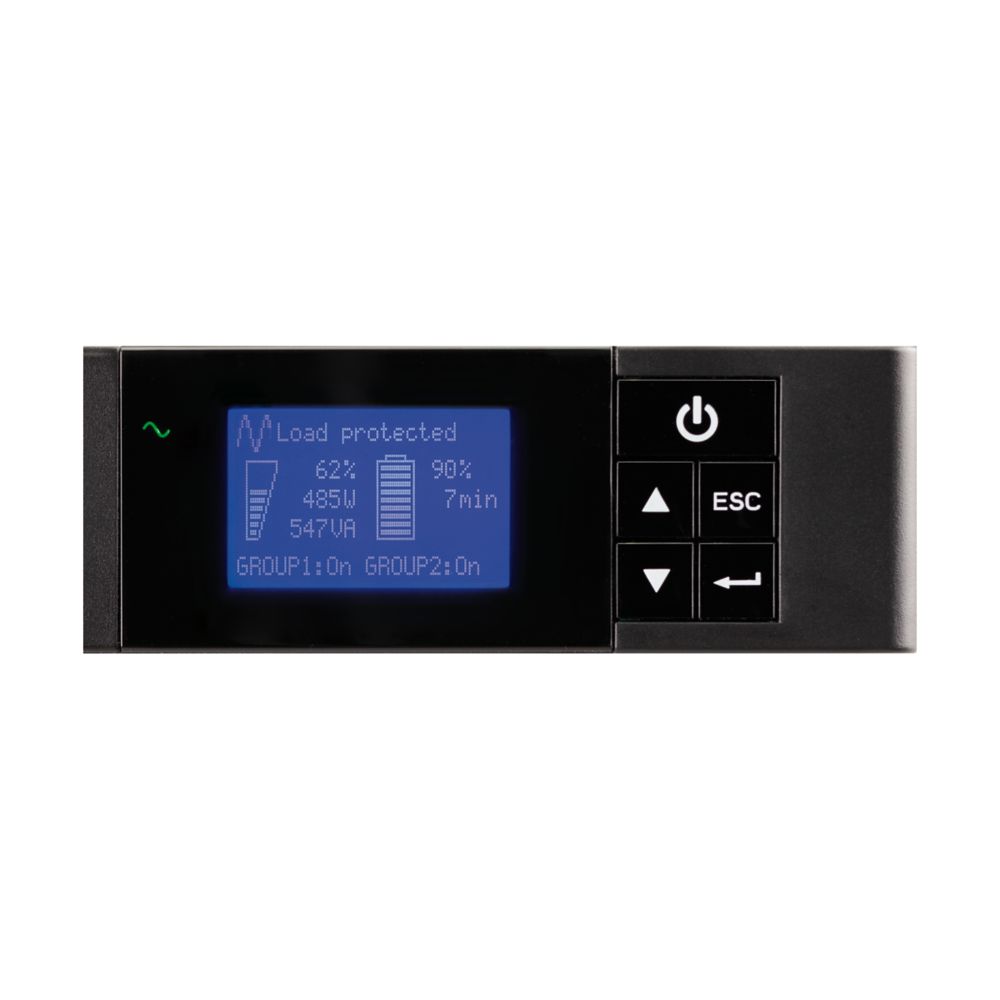

User-friendly LCD screen for UPS status and event tracking
Optional Network Card available for remote monitoring and cybersecurity
3-year Eaton warranty

Downloads & Resources

General
Catalog Number	5P1550GR
Product Depth	21.8 in
Product Height	1.7 in
Product Width	17.4 in
Product Weight	42.7 lb
Electrical Input
Electrical Input	C14
Input Nominal Voltage	230V
Nominal Frequency	50/60 Hz
Input Power Factor	1
Input Voltage Range	160-294 V (adjustable to 150 V-294 V)
Input Frequency Range	47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode
Electrical Output
Battery Type	Sealed, lead-acid
Receptacle	(6) C13
VA Rating	1550
Wattage	1,100
Output Nominal Voltage	200/208/220/230/240V
Topology	Line-interactive
Battery
Battery Management	ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Communications
Expansion Slots	One slot; Gigabit Network Card (Network-M3) is optional
Software Compatibility	Eaton Intelligent Power Manager
User Interface	Graphical LCD Screen
Environmental
BTU Rating	Online: 113, Battery 714
Additional Specifications
Form Factor	Rack
Rack Size	1U
Efficiency at Max. Load	98
Package Contents	UPS User manual CD Intelligent Power Software Suite CD Quick start guide 4-post rail kit USB cable RS-232 cable 2 IEC-to-IEC jumper cables Output cable locking system Input cable locking system
Compliances	FCC Part 15 Class A Subpart B Sections 15.107b , 15.109b RoHS Compliant CE Marked
Certifications	UL 1778 UL 497A cUL Listed cULus Listed IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B
Warranty & Support
Standard Factory Warranty	3-YEAR FACTORY WARRANTY w/ REGISTRATION -3 years-Parts, electronics, and batteries coverage-Standard ground shipping-Technical support
Extended Service Plans	ADVANCED DEPOT EXCHANGE-5-YEAR DEPOT REPAIR: 5SW5Y-1750UC-Expedited parts coverage for 5 years-Parts, electronics and UPS batteries coverage-Next business day shipping-Technical support5-YEAR ON-SITE PLAN: WFLN75XX-2509UC - On-site parts and labor coverage for years 5- Parts, electronics and UPS batteries coverage- 24x7 on-site labor coverage, next-day response- Next-day shipping- Technical support

General
	Eaton 5P1550GR UPS$1,646.23 (0)
Product Depth	21.8 in
Product Height	1.7 in
Product Width	17.4 in
Product Weight	42.7 lb
Electrical Input
Electrical Input	C14
Input Nominal Voltage	230V
Nominal Frequency	50/60 Hz
Input Power Factor	1
Input Voltage Range	160-294 V (adjustable to 150 V-294 V)
Input Frequency Range	47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode
Electrical Output
Battery Type	Sealed, lead-acid
Receptacle	(6) C13
VA Rating	1550
Wattage	1,100
Output Nominal Voltage	200/208/220/230/240V
Topology	Line-interactive
Battery
Battery Management	ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Communications
Expansion Slots	One slot; Gigabit Network Card (Network-M3) is optional
Software Compatibility	Eaton Intelligent Power Manager
User Interface	Graphical LCD Screen
Environmental
BTU Rating	Online: 113, Battery 714
Additional Specifications
Form Factor	Rack
Rack Size	1U
Efficiency at Max. Load	98
Package Contents	UPS User manual CD Intelligent Power Software Suite CD Quick start guide 4-post rail kit USB cable RS-232 cable 2 IEC-to-IEC jumper cables Output cable locking system Input cable locking system
Compliances	FCC Part 15 Class A Subpart B Sections 15.107b , 15.109b RoHS Compliant CE Marked
Certifications	UL 1778 UL 497A cUL Listed cULus Listed IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B
Warranty & Support
Standard Factory Warranty	3-YEAR FACTORY WARRANTY w/ REGISTRATION -3 years-Parts, electronics, and batteries coverage-Standard ground shipping-Technical support
Extended Service Plans	ADVANCED DEPOT EXCHANGE-5-YEAR DEPOT REPAIR: 5SW5Y-1750UC-Expedited parts coverage for 5 years-Parts, electronics and UPS batteries coverage-Next business day shipping-Technical support5-YEAR ON-SITE PLAN: WFLN75XX-2509UC - On-site parts and labor coverage for years 5- Parts, electronics and UPS batteries coverage- 24x7 on-site labor coverage, next-day response- Next-day shipping- Technical support
